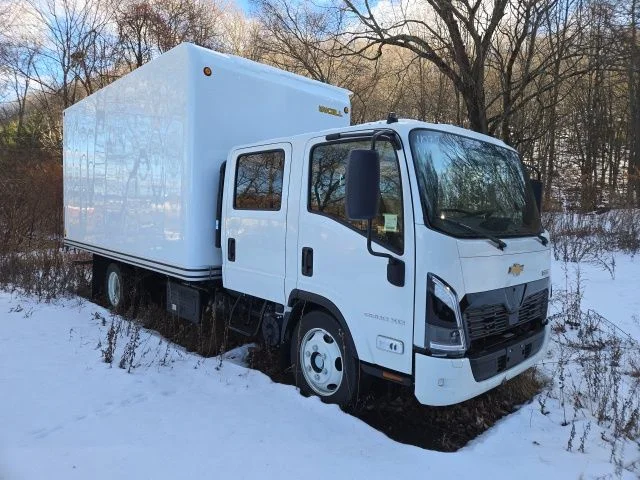

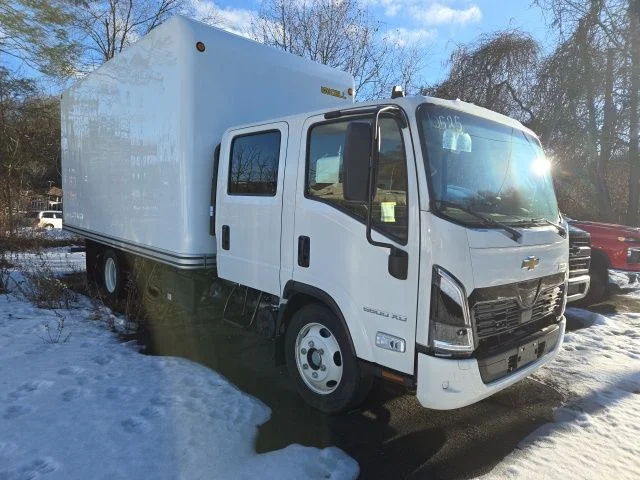

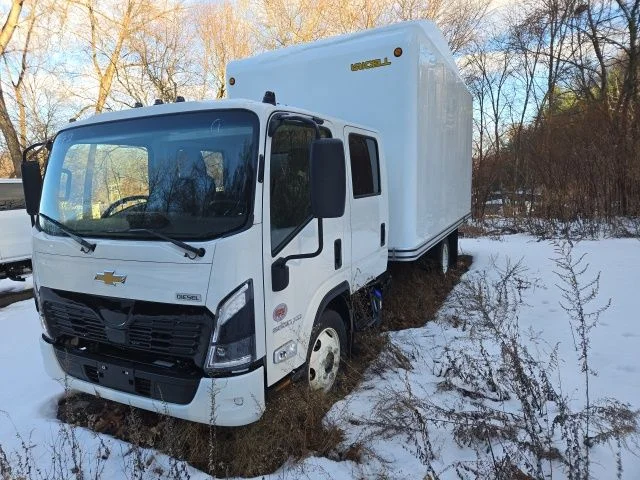

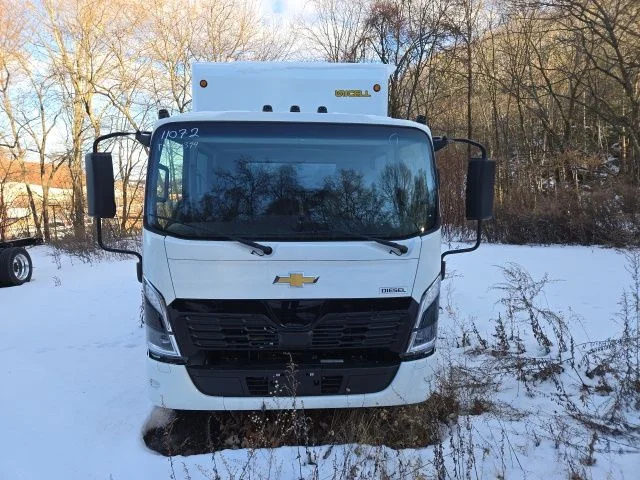

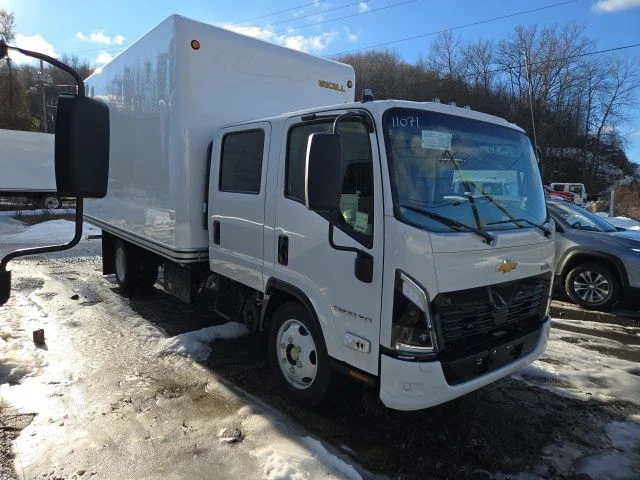

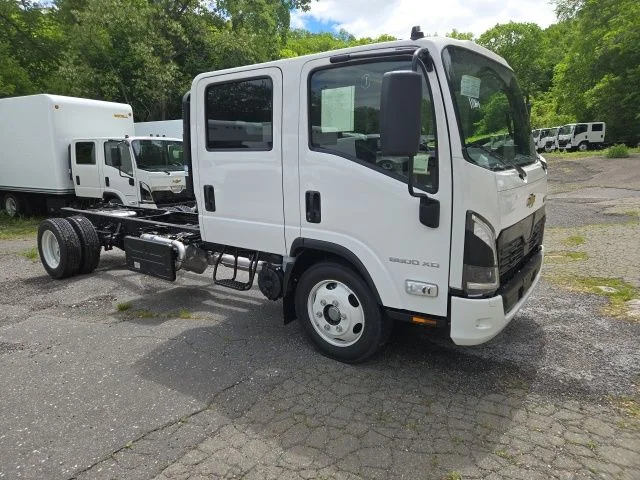

New 2026 Chevrolet 5500 XD LCF Diesel Base RWD 4D Crew Cab

VIN: JALEEJ163T7P00394
Stock: TR11072T26

(7) Photos

Other Offers You May Qualify For

GM Rewards Card Sales Sign Up and Spend Offer $500

2026 GM Business Choice Program - Upfit Equipment Cash Option $750

Price excludes tax, title, registration, and dealer conveyance fee. Dealer conveyance fee is $997.00. Dealer not responsible for typographical errors. See dealer for details

Disclaimer:

New vehicle pricing includes all offers and incentives. Tax, Title and Tags not included in vehicle prices shown and must be paid by the purchaser. While great effort is made to ensure the accuracy of the information on this site, errors do occur so please verify information with a customer service rep. This is easily done by calling us or by visiting us at the dealership.

**With approved credit. Terms may vary. Monthly payments are only estimates derived from the vehicle price with a 72 month term, 4.9% interest and 20% downpayment.

Payment Calculator

Basic Info

Exterior:

White
Drivetrain:

RWD
Interior:

Medium Ash Gray
Transmission:

Aisin 6-Speed Automatic
Engine:

5.2L 4 Cylinder 16V
Location

Blasius Chevrolet/Cadillac

Description

Come see New England's #1 Volume Chevrolet dealer with THE biggest discounts and best service. Dealer Discount of $14,000 off MSRP ABS brakes, Electronic Stability Control, Low tire pressure warning, Remote keyless entry, Traction control. Arc White 2026 Chevrolet RWD Aisin 6-Speed Automatic 5.2L 4 Cylinder 16V

Vehicle Details

Tires, front, 225/70R19.5 F, all-season (Standard on 4500XD and 5500XD only.)
Tires, rear, 225/70R19.5 F, all-season (Standard on 4500XD and 5500XD only.)
Grille, Black
Assist steps
Glass, tinted
LED Headlamps includes integrated LED turn signal indicators
Mirror, outside left-hand and right hand dual cab-mounted with integral convex mirror
Windshield wiper, pulse, wet arm
Headlamp washer system

Cup holders
Floor mats
Steering wheel, urethane

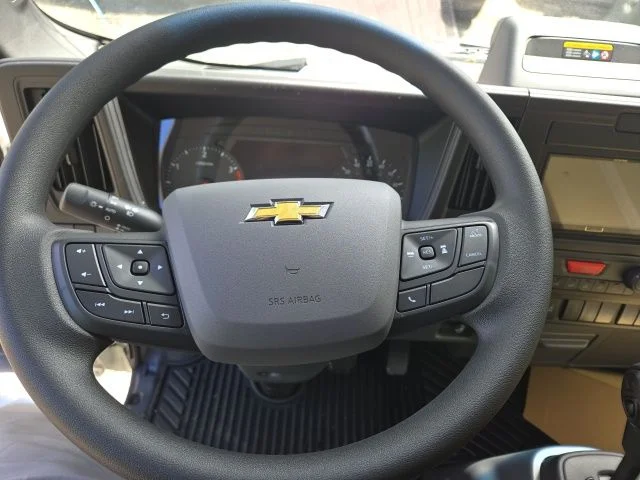

Steering wheel, tilt and telescopic
Driver Information Center, (DIC) (monitors vital functions including diesel exhaust fluid levels (DEF), particulate matter emissions level in the diesel particulate filter (DPF), diesel particulate filter regeneration, service reminders for engine oil, transmission oil, differential oil, power steering fluid, engine oil filter, and fuel filters. Also provides fuel economy reporting by average, instant, and trip.)

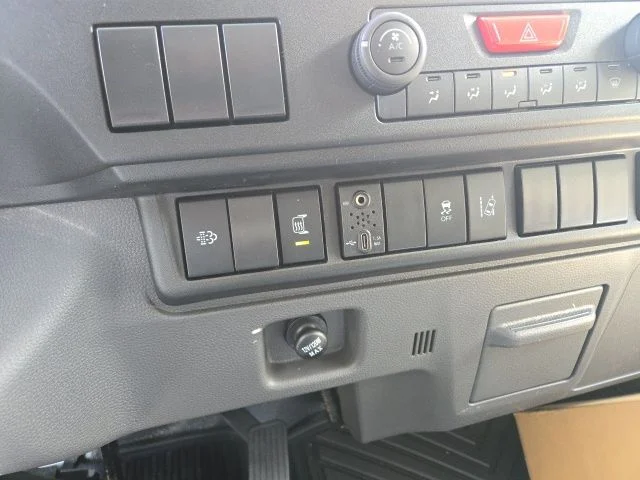

Air conditioning, single-zone manual, integral in-dash mounted
Windows, power
Windshield washer bottle access on passenger side dash when passenger-side door is open
Storage, door pockets
Lighting, interior dome
Rear dome and body lamp switch
Storage, seatback pockets

Audio system feature, 2 speakers

Engine, Diesel 5.2L 4 cylinder 215 hp [160.3 kW] @2500 rpm, 452 lb-ft of torque [612.8 Nm] @ 1850-2750 rpm (Governed). 16 valve, four cycle, chain-driven dual overhead camshaft valve train, a cast iron cylinder block, and a cast aluminum cylinder head. Turbocharged, inter-cooled, water cooled EGR, direct injection, electronically controlled common rail fuel system and engine cruise control. Oil level check switch and light. Engine warning system with audible warning for low oil pressure, high coolant temperature, and a protection system that will reduce fueling if excessive coolant temperature is detected
Rear axle, 5.57 ratio (Standard on 5500XD only.)
Air cleaner, heavy-duty, 11" diameter dry paper single element. Air cleaner canister standard with air restriction gauge. Back of cab location.
Drivetrain, rear-wheel drive
Battery, dual 750 cold-cranking amps, 12 volt, maintenance free
Alternator, 140 amps
Frame, ladder-type channel frame. Full C section straight frame 33.5" (85.1 cm) wide.
Incomplete vehicle certification
Wheelbase, 176" (447.0 cm)
GVWR, 19,500 lbs. (8845 kg) (Standard on 5500XD only.)
Front suspension, 8,440 lbs. (3828 kg) tapered leaf springs. Includes shock absorbers and stabilizer bar. (Standard on 4500XD and 5500XD only.)
Rear Suspension, 14,550 lbs. (6600 kg), tapered leaf spring with shock absorbers. (Standard on 5500 XD only.)
Front axle, 7275 lbs. (3300 kg), reverse Elliot "I"-beam includes integral hydraulic power steering with an 18.8-20.9:1 gear ratio (Standard on 5500XD only.)
Rear axle, 14,550 lbs. (6600 kg), full-floating with oil lubricated rear wheel-bearings (Standard on 5500XD only.)
Vehicle Application Truck
Brakes, 4-wheel antilock, front and rear disc with traction control and stability control
Exhaust brake
Exhaust, single horizontal outlet
Fuel tank, 30 Gallon, (113L), stainless steel includes 2 auxiliary fuel ports

Brake, parking, cable actuated, internal expanding drum type, transmission-mounted
Daytime Running Lamps
Tire Pressure Monitoring System
Airbags, frontal, driver and right front passenger

Vehicle Name: Chevrolet 5500 XD LCF Diesel
Body Style: Crew Cab Chassis Cab
Body Code:
Drivetrain: Rear Wheel Drive
Passenger Capacity: 3
Number of Passenger Doors: 2
Gross Axle Wt Rating - Front: 7275
Gross Axle Wt Rating - Rear: 13660
Curb Weight - Front: 4361
Curb Weight - Rear: 2463
Gross Vehicle Weight Rating Cap: 19500
Gross Combined Wt Rating: 25500
Engine Order Code: I1B
Engine Type: Turbocharged Diesel I4
Displacement: 5.2L/317
Fuel System: Direct Injection
SAE Net Horsepower @ RPM: 215 @ 2500
SAE Net Torque @ RPM: 452 @ 1850-2750
Trans Order Code: IR7
Trans Type: 6
Trans Description Cont.: Automatic
Trans Description Cont. Again:
First Gear Ratio (:1): 3.742
Second Gear Ratio (:1): 2.00
Third Gear Ratio (:1): 1.343
Fourth Gear Ratio (:1): 1.000
Fifth Gear Ratio (:1): 0.773
Sixth Gear Ratio (:1): 0.634
Reverse Ratio (:1): - TBD -
Clutch Size:
Trans Power Take Off:
Trans PTO Access:
Transfer Case Model:
Transfer Case Gear Ratio (:1), High:
Transfer Case Gear Ratio (:1), Low:
Transfer Case Power Take Off:
Cold Cranking Amps @ 0° F (Primary): 750
Cold Cranking Amps @ 0° F (2nd): 750
Cold Cranking Amps @ 0° F (3rd):
Maximum Alternator Capacity (amps): 140
Maximum Alternator Watts: - TBD -
Total Cooling System Capacity: 20.8
Engine Oil Cooler:
Frame Type: Ladder-Type C-Section
Sect Modulus Rails Only: 11.87
Frame RBM: 576350
Frame Strength: 54800
Frame Thickness: 8.50 x 2.76 x 0.24
Suspension Type - Front: Independent w/Tapered Leaf Springs
Suspension Type - Rear: Independent w/Multi-Leaf Springs
Spring Capacity - Front: 8440
Spring Capacity - Rear: 14550
Axle Type - Front: I-Beam
Axle Type - Rear:
Axle Capacity - Front: 7275
Axle Capacity - Rear: 14550
Axle Ratio (:1) - Front:
Axle Ratio (:1) - Rear: 5.571
Shock Absorber Diameter - Front: 42.0
Shock Absorber Diameter - Rear: 42.0
Stabilizer Bar Diameter - Front:
Stabilizer Bar Diameter - Rear:
Front Tire Order Code: 2TB
Rear Tire Order Code: 3TB
Spare Tire Order Code:
Front Tire Size: 225/70R19.5
Rear Tire Size: 225/70R19.5
Spare Tire Size:
Front Tire Capacity: 3640
Rear Tire Capacity: 3415
Spare Tire Capacity:
Revolutions/Mile @ 45 mph - Front: 643
Revolutions/Mile @ 45 mph - Rear: 643
Revolutions/Mile @ 45 mph - Spare:
Front Wheel Size: 19.5 x 6
Rear Wheel Size: 19.5 x 6
Spare Wheel Size:
Front Wheel Offset: 127
Rear Wheel Offset: 127
Spare Wheel Offset:
# of Bolt Holes - Front: 6
# of Bolt Holes - Rear: 6
# of Bolt Holes - Spare:
Front Wheel Material: Steel
Rear Wheel Material: Steel
Spare Wheel Material:
Steering Type: Pwr
Steering Ratio (:1), On Center: - TBD -
Steering Ratio (:1), At Lock: - TBD -
Turning Diameter - Curb to Curb: 52.5
Turning Diameter - Wall to Wall: 58.1
Brake Type: Pwr
Brake ABS System: 4-Wheel
Brake ABS System (Second Line):
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ):
Front Brake Rotor Diam x Thickness: 14.3 x - TBD -
Rear Brake Rotor Diam x Thickness:
Drum - Front (Yes or ):
Front Drum Diam x Width:
Drum - Rear (Yes or ): Yes
Rear Drum Diam x Width: 14.6 x 5.91
Fuel Tank Capacity, Approx: 30.0
Aux Fuel Tank Capacity, Approx:
Fuel Tank Location: Frame Rail
Aux Fuel Tank Location:
Front Head Room: 38.4
Front Leg Room: 29.5
Front Shoulder Room: 70.7
Front Hip Room: 67.7
Second Head Room: - TBD -
Second Leg Room: - TBD -
Second Shoulder Room: - TBD -
Second Hip Room: - TBD -
Wheelbase: 176.0
Length, Overall w/o rear bumper: 262.7
Width, Max w/o mirrors: 81.3
Height, Overall: 92.9
Overhang, Front: 48.3
Overhang, Rear w/o bumper: 43.1
Front Bumper to Back of Cab: 70.9
Cab to Axle: 153.5
Cab to End of Frame: 196.6
Ground to Top of Load Floor: - TBD -
Ground to Top of Frame: 33.0
Frame Width, Rear: 33.5
Ground Clearance, Front: 7.5
Ground Clearance, Rear: 7.5
Front Frame Rating: - TBD -
Seventh Gear Ratio (:1):
Eighth Gear Ratio (:1):
Ninth Gear Ratio (:1):
Tenth Gear Ratio (:1):
Eleventh Gear Ratio (:1):
Twelfth Gear Ratio (:1):
Thirteenth Gear Ratio (:1):
Fourteenth Gear Ratio (:1):
Fifteenth Gear Ratio (:1):
Sixteenth Gear Ratio (:1):
Seventeenth Gear Ratio (:1):
Eighteenth Gear Ratio (:1):
Nineteenth Gear Ratio (:1):
Twentieth Gear Ratio (:1):
Second Reverse Gear Ratio (:1):
Third Reverse Gear Ratio (:1):
Fourth Reverse Gear Ratio (:1):
Fifth Reverse Gear Ratio (:1):
Sixth Reverse Gear Ratio (:1):
Body Weight (uncalculated): - TBD -
Driver Weight: - TBD -
Axle Ratio - Low Rear (:1):
Driver Ratio: - TBD -
Torque @ Clutch Engage: - TBD -
Cab to Body: - TBD -
Grade (%): - TBD -
Frontal Area: - TBD -
Governed Engine Speed (RPM):
Torque Converter: 1.7639
Front Wheel Description Cont.:
Rear Wheel Description Cont.:
Spare Wheel Description Cont.:
Static Loaded Radius: - TBD -
Front Bolt Pattern: 6 Hole JIS 8.75"
Rear Bolt Pattern: 6 Hole JIS 8.75"
Spare Bolt Pattern:
Number Of Tires Front: 2
Number Of Tires Rear: 4
Number Of Tires Spare:
Transmission Manufacturer: Aisin A465
Transmission Type:
Engine Series: 4HK1-TC
Body Length Default Value: 20
Engine Horsepower At RPM: 215 @ 2500
Engine Horsepower At Max Speed RPM: - TBD -
Max Speed For Gradeability: - TBD -
Model Group: 5500
Vehicle Segment: Chassis
Vehicle Type: Crew Cab
Engine Displacement Units: 5.2
Engine Camshaft: DOHC
Engine Block Type: iron
Engine Cylinder Count: 4
Engine Valve Count: 4
Country of Origin: Japan Isuzu Incomplete Vehicle (Med./Heavy)

2 Speakers
2 Speakers Audio System
AM/FM radio
AM/FM Stereo with Bluetooth
Air Conditioning
Single-Zone Electronic Air Conditioning
Power steering
Power windows
Remote keyless entry
Traction control
4-Wheel Disc Brakes
ABS brakes
Dual front impact airbags
Front anti-roll bar
Low tire pressure warning
Electronic Stability Control
Headlight cleaning
Speed control
Dual rear wheels
Bumpers: body-color
Driver door bin
Overhead console
Tachometer
Telescoping steering wheel
Tilt steering wheel
Trip computer
Front Bucket Seats
Front Center Armrest
High Back Front Bucket Seats
Tricot Cloth Seat Trim
Passenger door bin
19.5" x 6" Steel Wheels
Driver Air Bag
Passenger Air Bag
A/C
ABS
Rear Wheel Drive
4 Cylinder Engine
Turbocharged
Floor Mats
Diesel Fuel
Daytime Running Lights
Keyless Entry
Power Door Locks
Running Boards/Side Steps
Cloth Seats
Bucket Seats
Power Steering
Adjustable Steering Wheel
Tires - Front All-Season
Tires - Rear All-Season
Traction Control
6-Speed A/T
Power Windows
A/T
Tire Pressure Monitor
Steel Wheels
Bluetooth Connection
LED Headlights

Premium Options & Packages

                            AM/FM Stereo with Bluetooth

                            Remote keyless entry
ENGINE, DIESEL 5.2L 4 CYLINDER

                                                                    215 hp [160.3 kW] @2500 rpm
 452 lb-ft of torque [612.8 Nm] @ 1850-2750 rpm (Governed). 16 valve
 four cycle
 chain-driven dual overhead camshaft valve train
 a cast iron cylinder block
 and a cast aluminum cylinder head. Turbocharged
 inter-cooled
 water cooled EGR
 direct injection
 electronically controlled common rail fuel system and engine cruise control. Oil level check switch and light. Engine warning system with audible warning for low oil pressure
 high coolant temperature
 and a protection system that will reduce fueling if excessive coolant temperature is detected

PAINT

                                                                    ARC WHITE

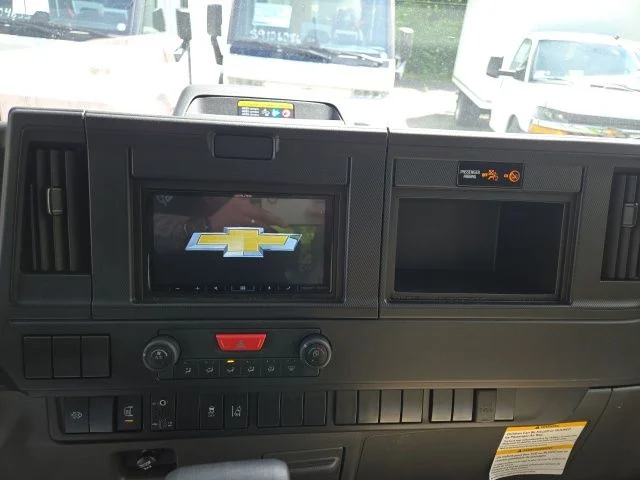

RADIO

                                                                    AUDIO SYSTEM
 AM/FM STEREO WITH AUXILIARY JACK
 USB PORT AND BLUETOOTH

SEAT, FRONT HIGH BACK BUCKET DRIVER AND PASSENGER

                                                                    Tricoat cloth covered reclining high back driver seat with single two occupant fold down passenger seat

TRANSMISSION, 6-SPEED AUTOMATIC AISIN A465 TRANSMISSION

                                                                    With fifth and sixth gear overdrive with lock up in 2nd
 3rd
 4th
 5th and 6th
 PTO capability automatic torque converter lockup in stationary PTO mode.

WHEELS

                                                                    WHEELS
 19.5" X 6"
 STEEL

Other Vehicles You May Like

Disclaimer:

**With approved credit. Terms may vary. Monthly payments are only estimates derived from the vehicle price with a 72 month term, 4.9% interest and 20% downpayment.

Vehicle Price

Interest Rate % Custom

Loan Term

Down Payment $

Trade In Value $

Payment Details

Estimated Amount Financed:

Disclaimer:

New vehicle pricing includes all offers and incentives. Tax, Title and Tags not included in vehicle prices shown and must be paid by the purchaser. While great effort is made to ensure the accuracy of the information on this site, errors do occur so please verify information with a customer service rep. This is easily done by calling us or by visiting us at the dealership.

**With approved credit. Terms may vary. Monthly payments are only estimates derived from the vehicle price with a 72 month term, 4.9% interest and 20% downpayment.

Search

New 2026 Chevrolet 5500 XD LCF Diesel Base RWD 4D Crew Cab

Basic Info

Description

Vehicle Details

Exterior

Interior

Entertainment

Mechanical

Safety

Tech Specs

Details

Premium Options & Packages

Other Vehicles You May Like

2025 Chevrolet 5500 XD LCF Diesel Base

2026 Chevrolet 5500 XD LCF Diesel Base

2026 Chevrolet 5500 XD LCF Diesel Base

Payment Details
